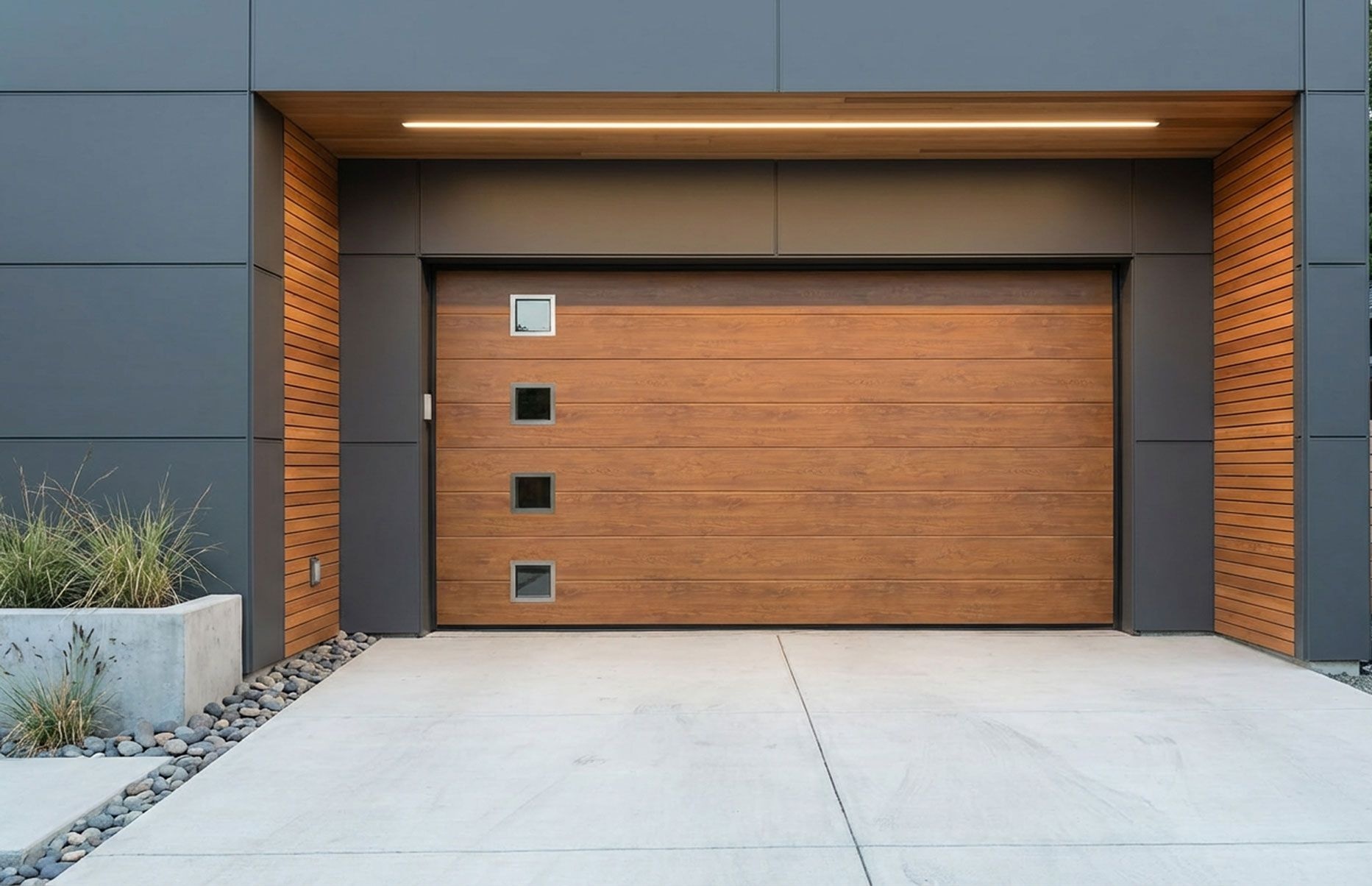

Garage door IDO-Compact X
Solution for low headroom (from 80 mm) – perfect for renovation
Solution for low headroom (from 80 mm) – perfect for renovation

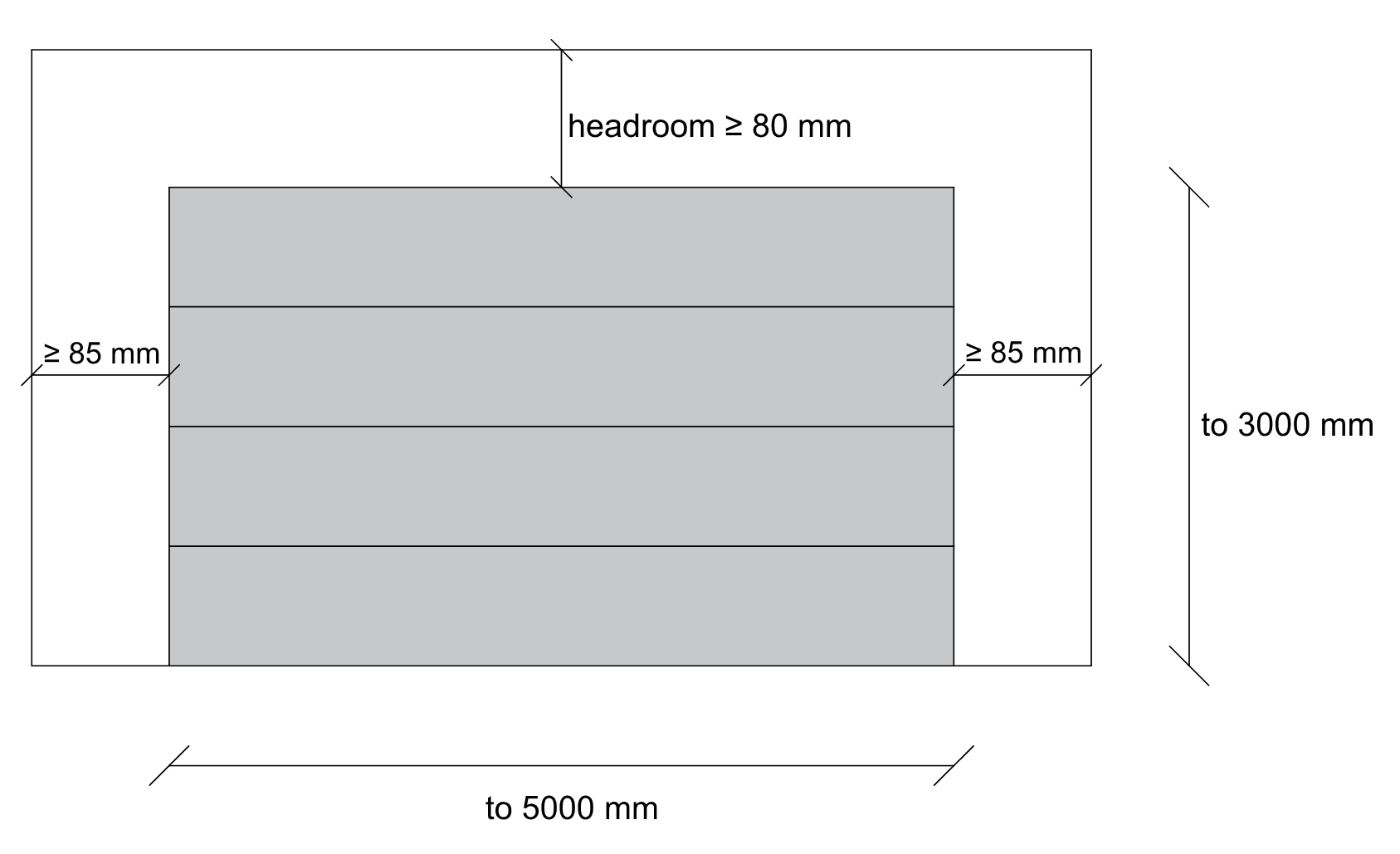

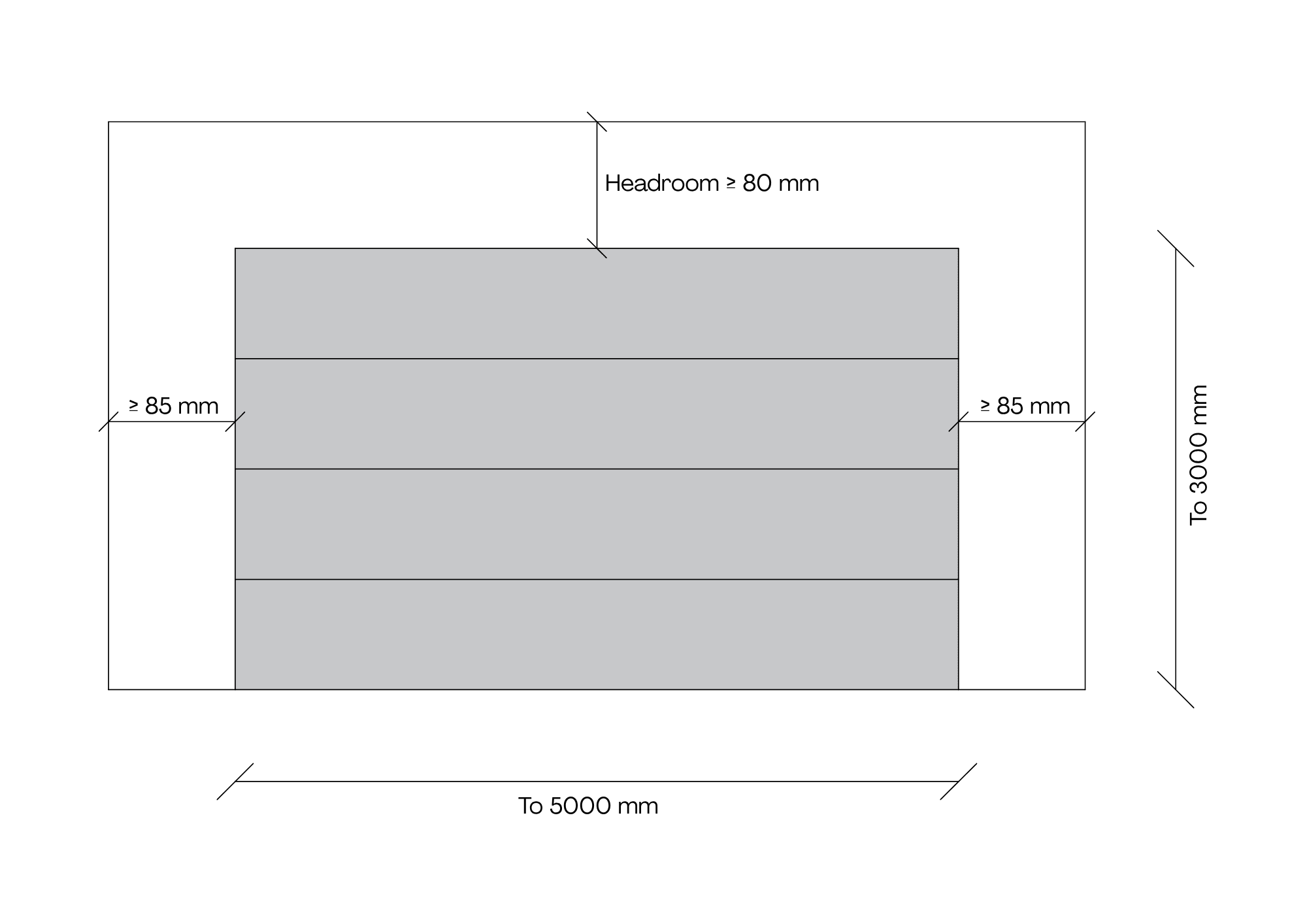

Maximum door width
5000 mm
Maximum door height
3000 mm
Minimum headroom
from 80 mm
Minimum side room (reveal widths)
85 mm
Required garage depth
opening height + 500 mm
Required garage depth with el. operator
opening height + 1150 mm
Door type
Residential
Spring type
Extension (side-mounted)
Spring service life
min. 10,000 cycles
Air permeability
class 4
Wind resistance
class 4–5
Door construction
galvanized steel, 1.5–2 mm
Operating temperature
from −40°C to +50°C
CE marking
EN 13241-1
Closed-contour panels are manufactured from galvanized steel sheet complying with UNI EN 10326 and are filled with high-density (44 kg/m³) polyurethane foam.
1
Profiled groove for the inter-panel seal
2
CFC-free polyurethane foam core. Fire classification: B1
3
High-quality steel sheet complying with DIN EN 10174
4
Zinc coating on both sides of the steel sheet
5
Surface textures available: SMOOTH, STUCCO, WOODGRAIN or SANDGRAIN
6
Protective PVC film
7
4 layers of steel sheet at the fixing points
Panel thickness
40 mm
Panel thermal transmittance, U
0,53 W/m²K
Steel sheet thickness
0,48 mm
Air permeability
class 3
Water tightness
class 3
Resistance to wind load
class 5

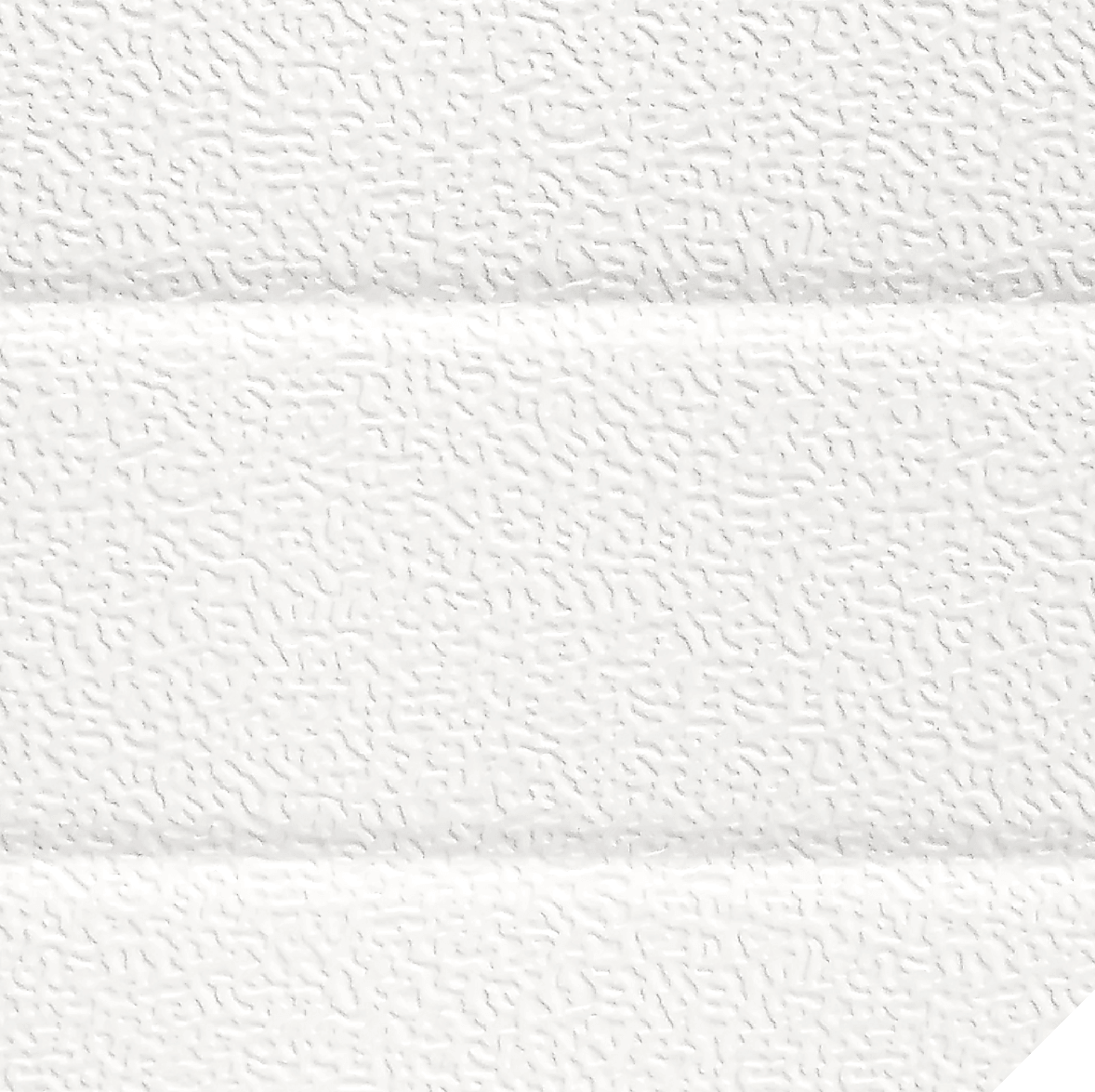

White RAL 9016
Stucco, V-grooves

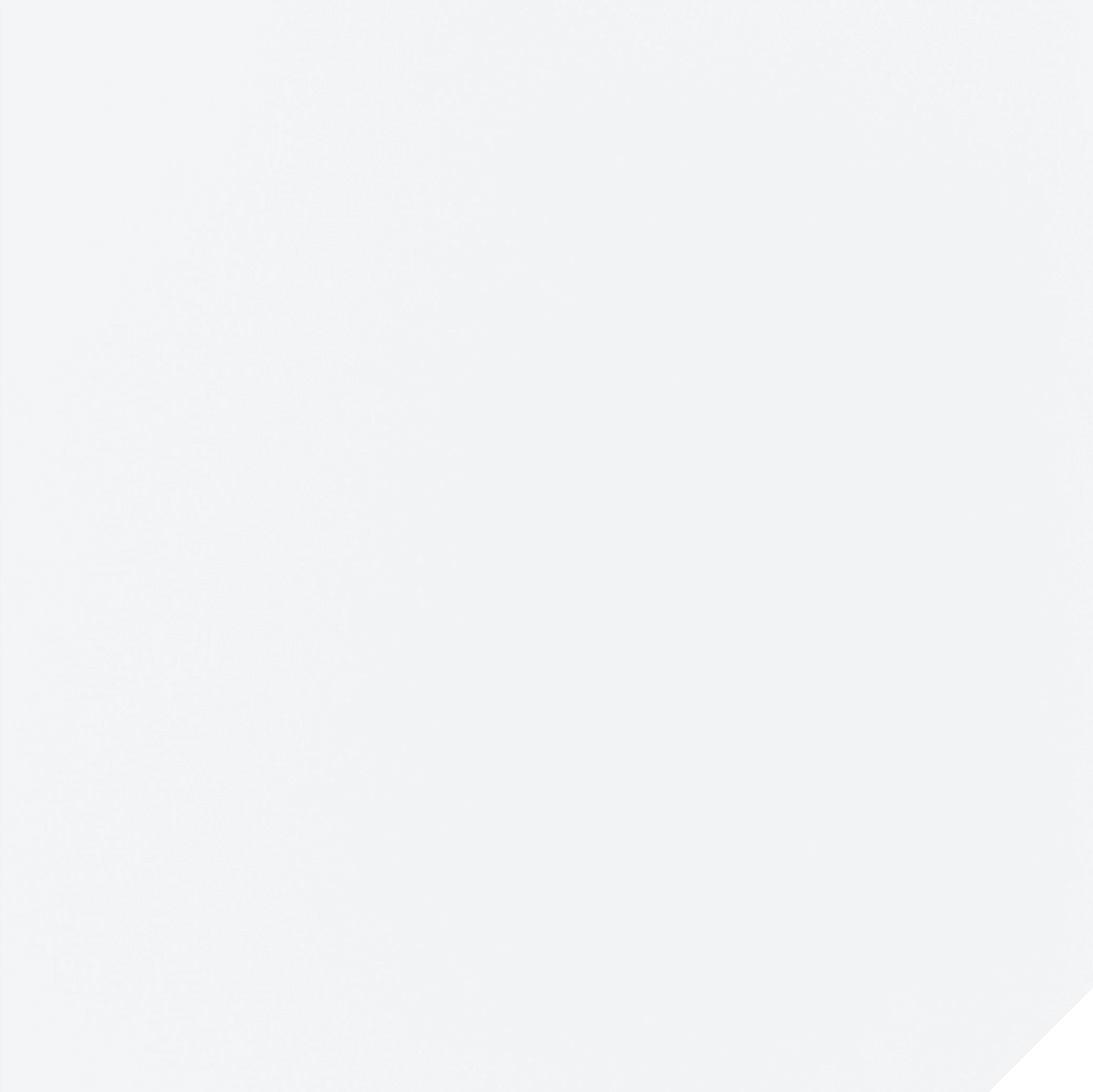

White RAL 9016
Smooth (Flat) +3% surcharge on the door price

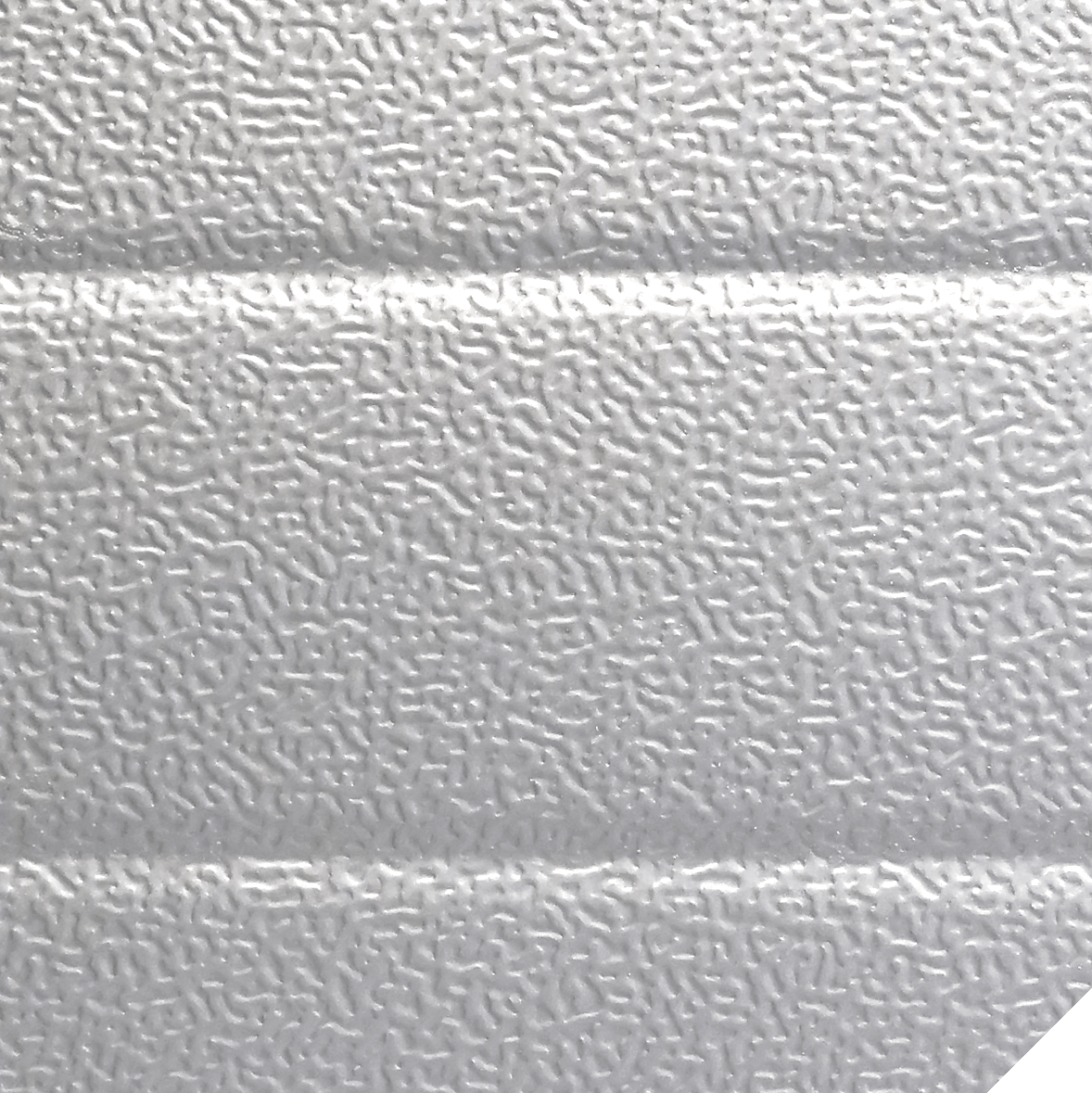

Silver RAL 9006
Stucco, V-grooves

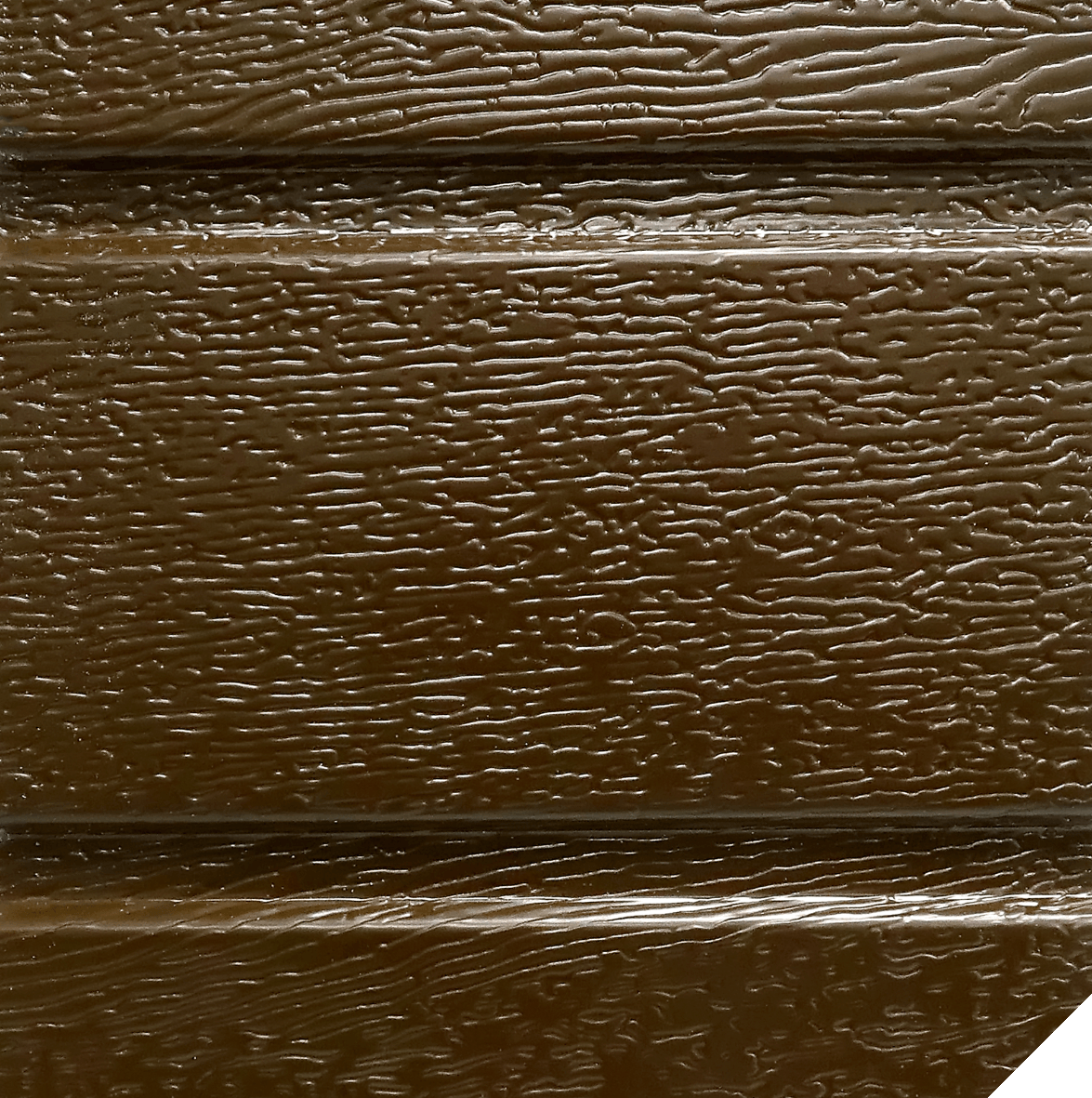

Brown RAL 8014
Woodgrain, wide U-grooves

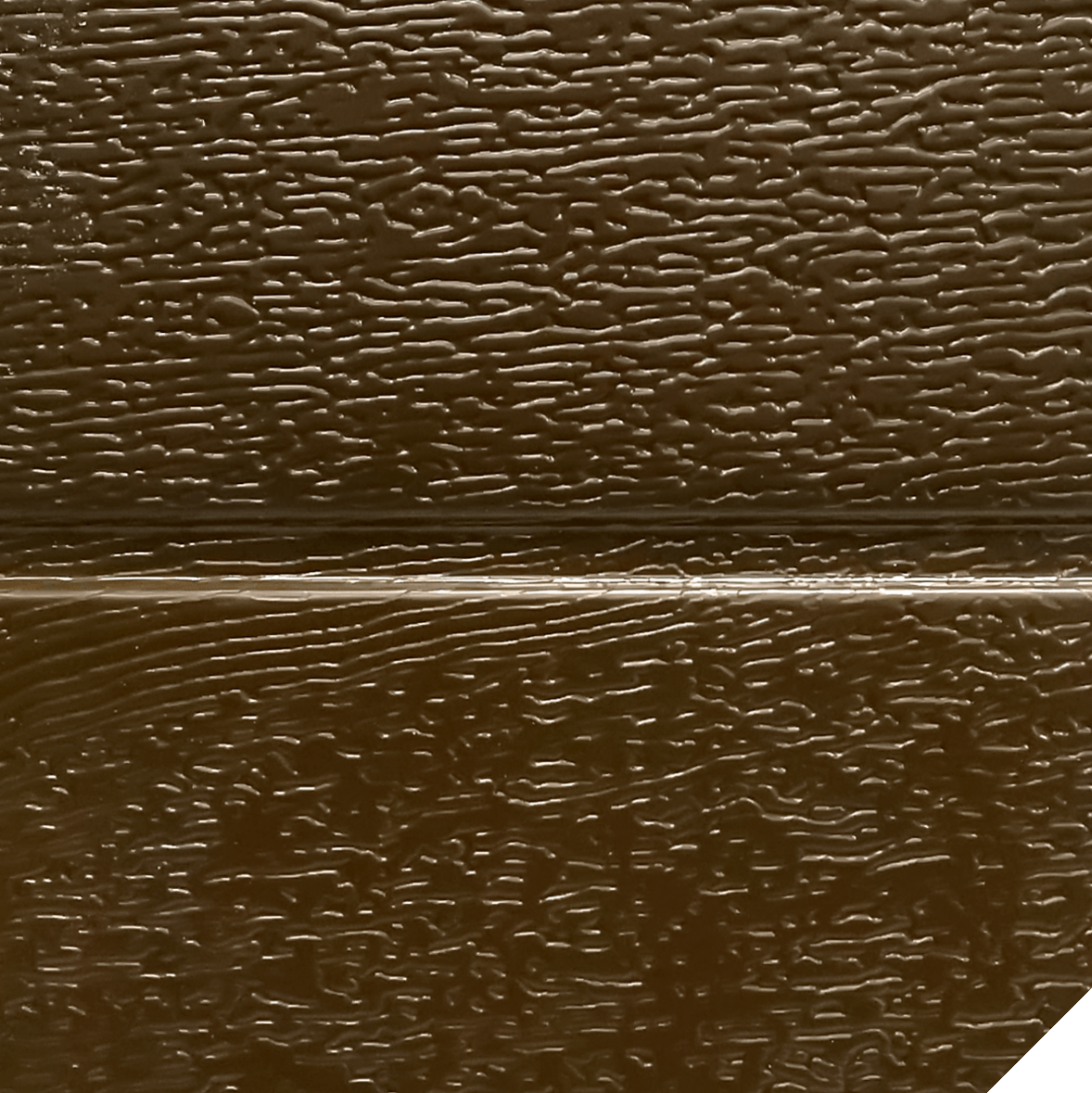

Brown RAL 8014
Woodgrain, wide U-groove

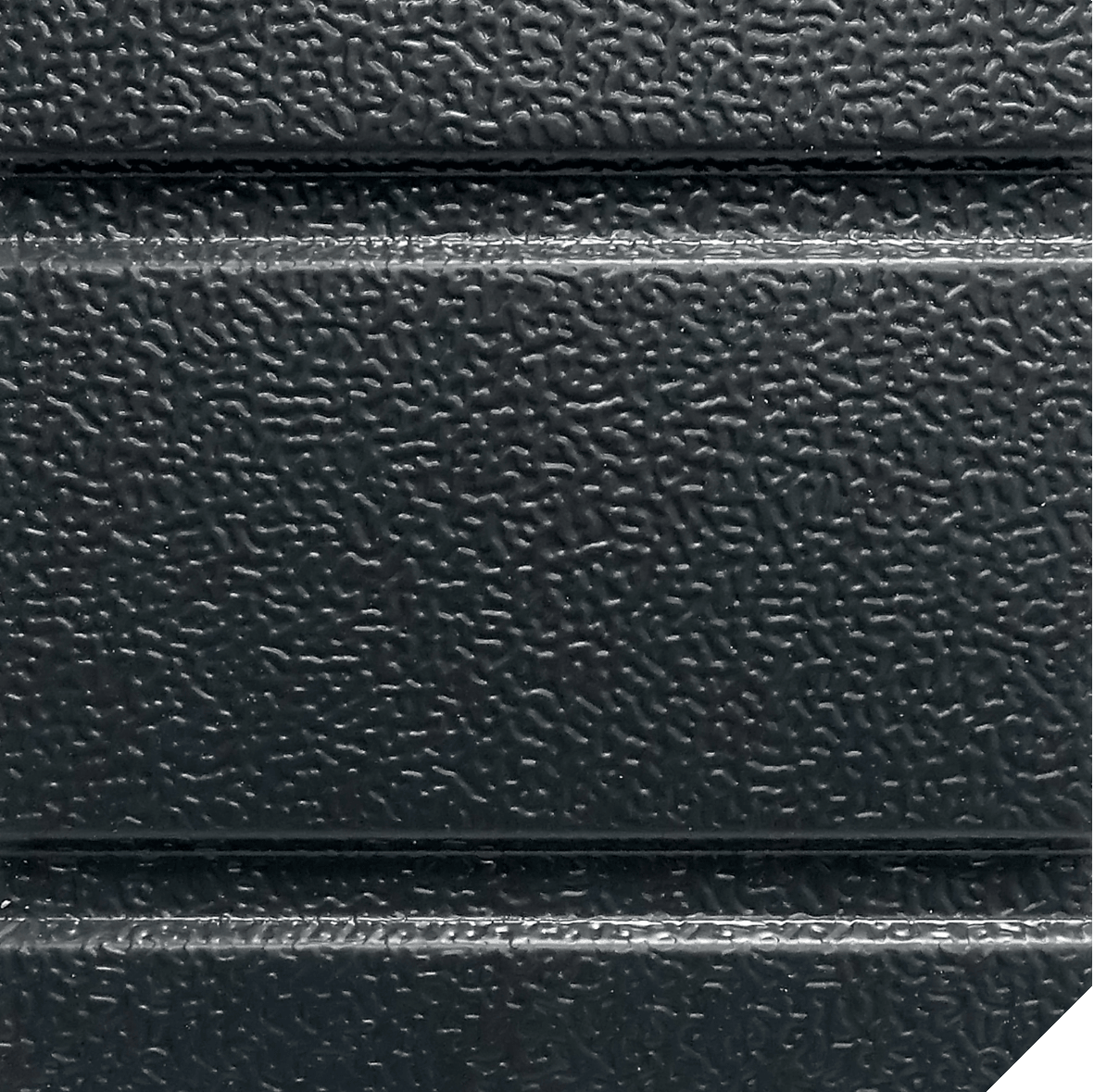

Anthracite RAL 7016 (grey)
Stucco, wide U-groove

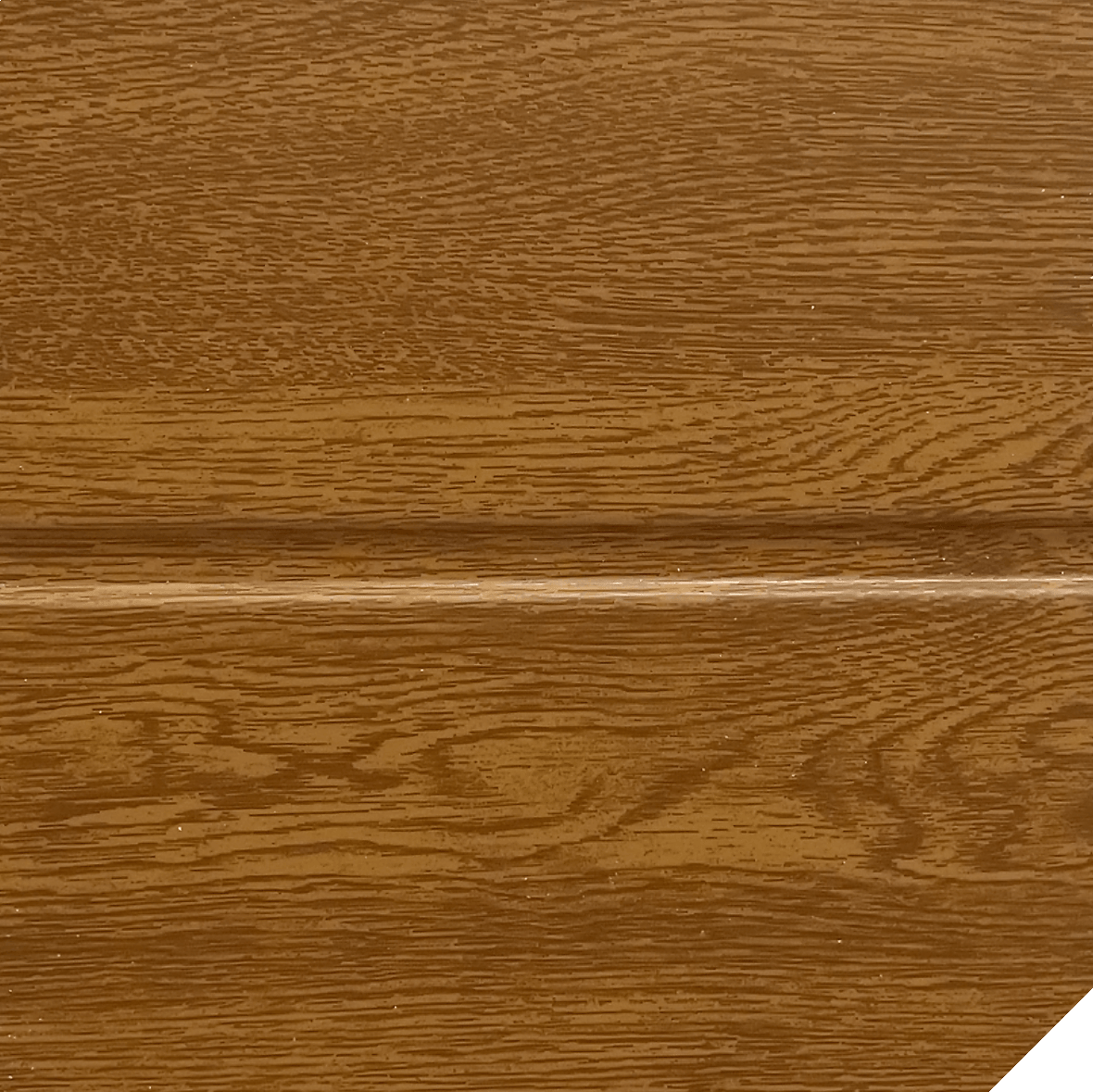

Golden Oak
Smooth, wide U-groove +13% surcharge on the door price

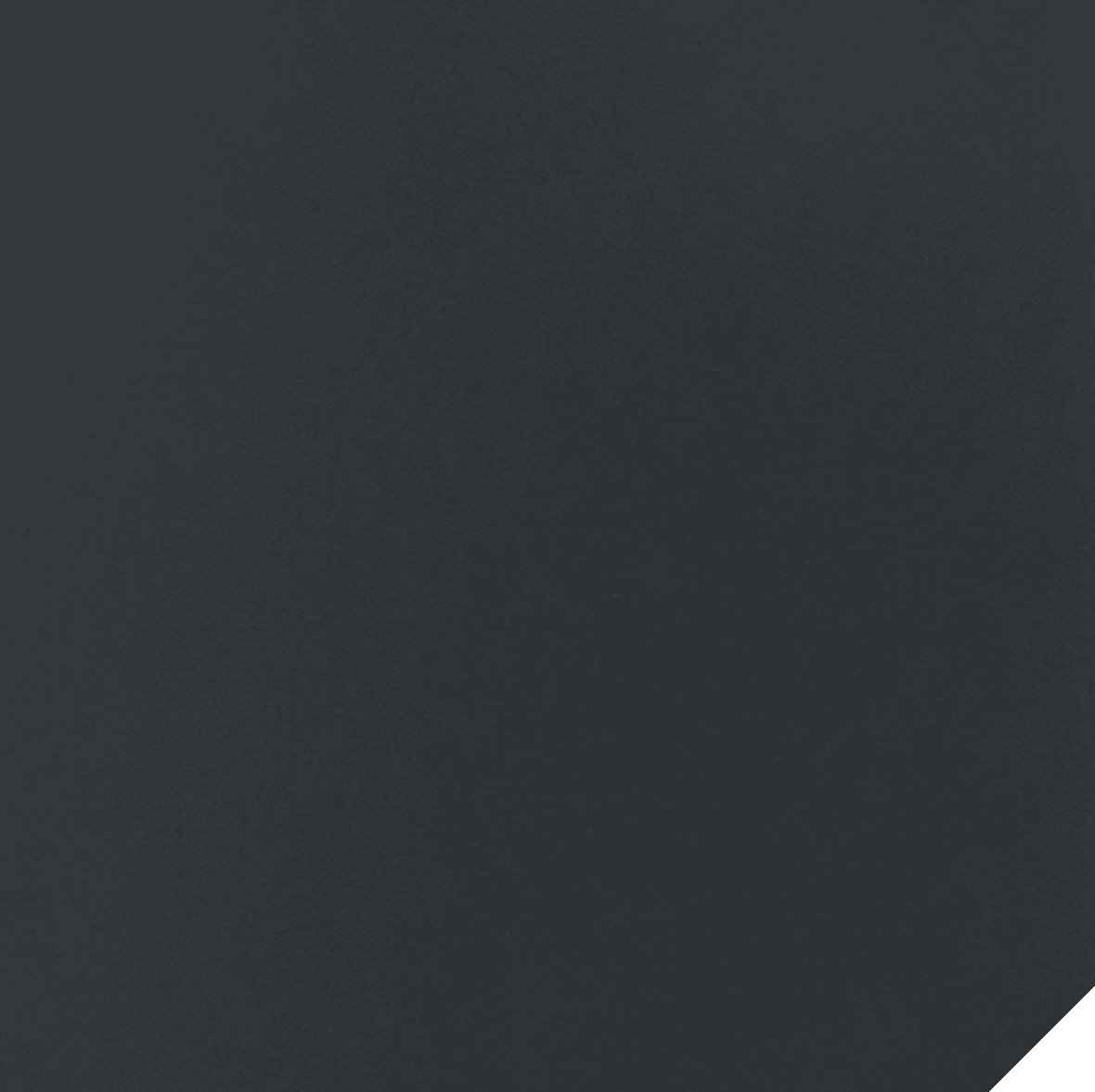

Anthracite RAL 7016 (grey)
Smooth (Flat) +3% surcharge on the door price

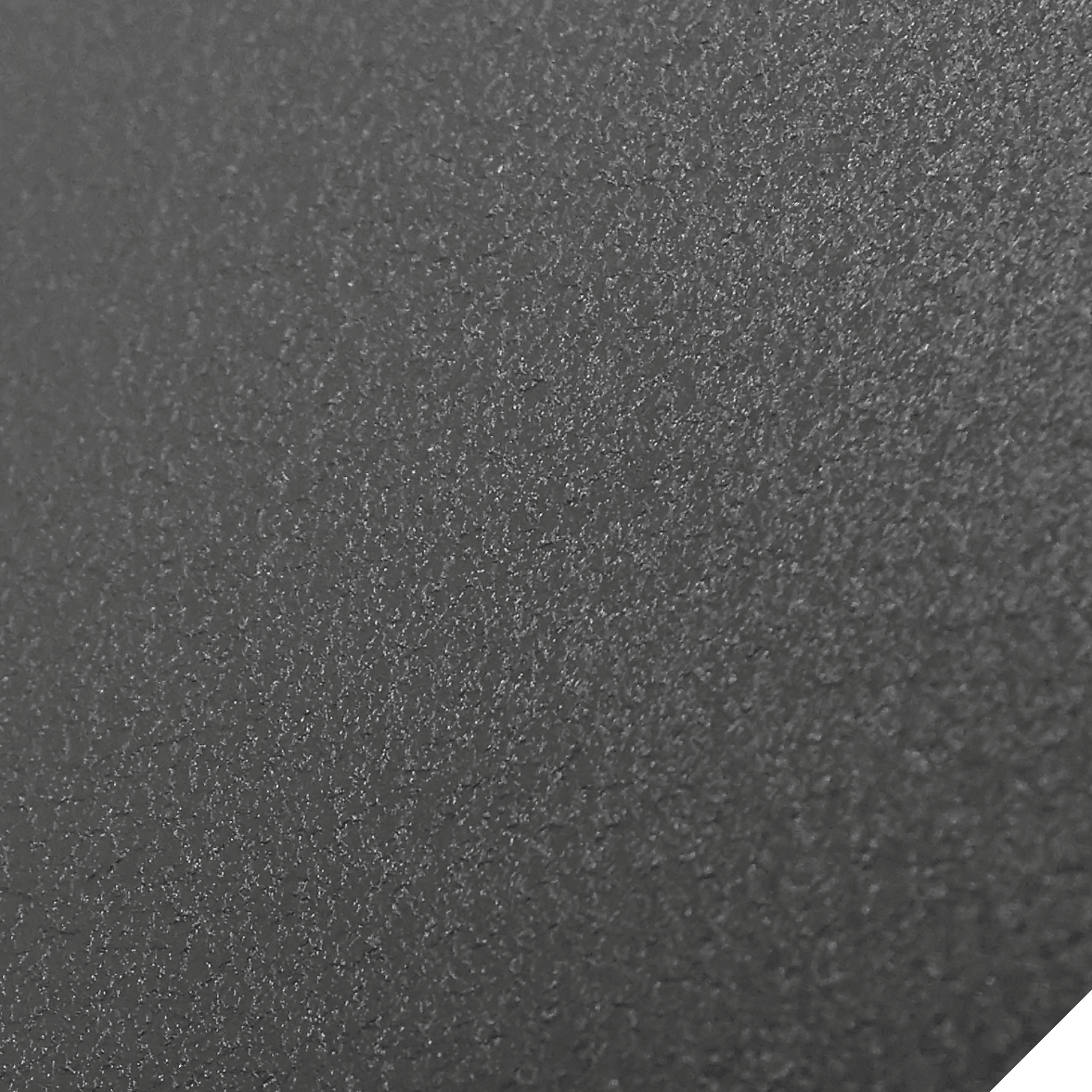

Anthracite RAL 7016 (grey)
Sandgrain, without grooves +10% surcharge on the door price
Segmentas iš vidaus

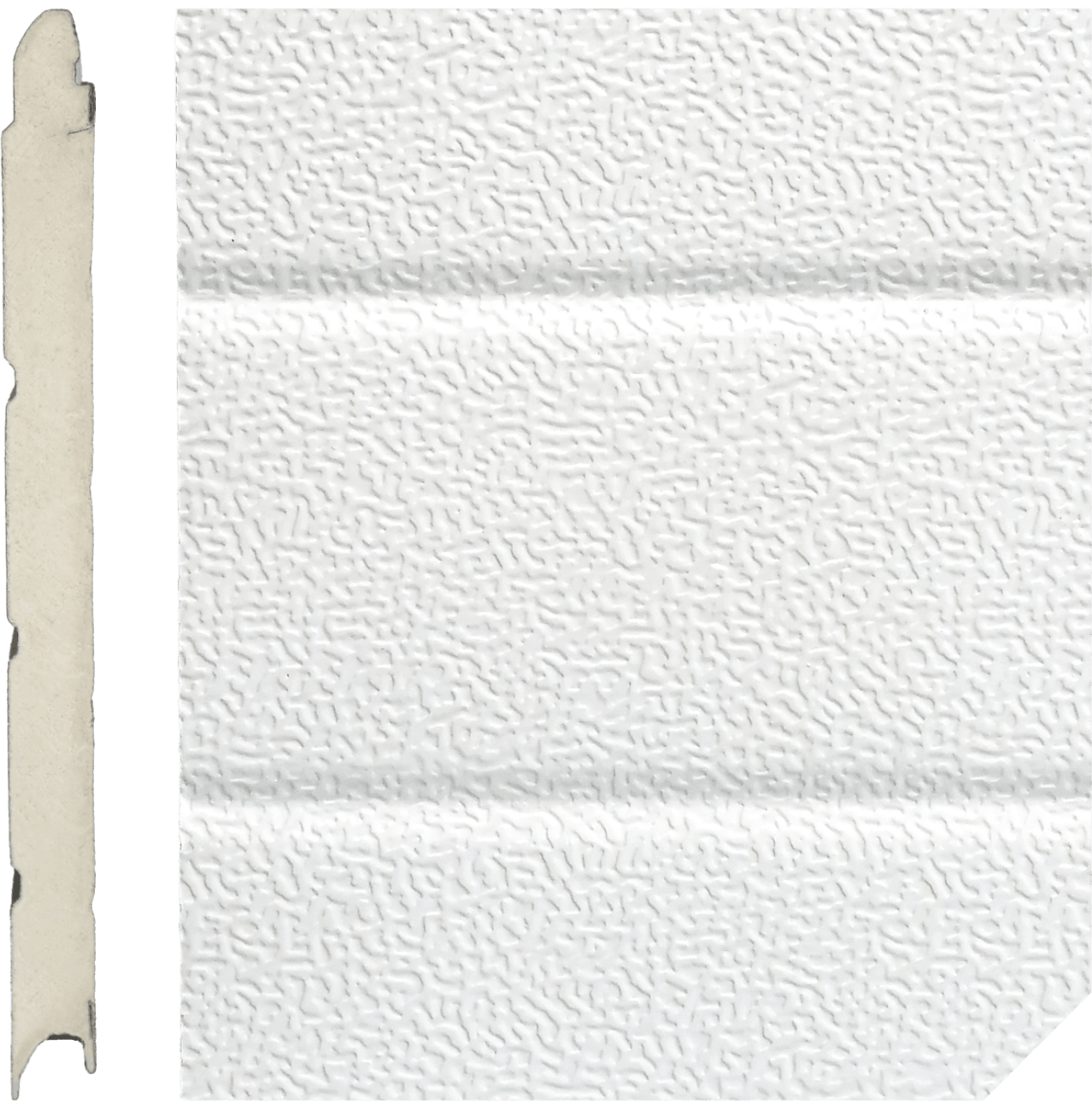

Segmento vaizdas iš vidaus ir šoninis pjūvis
