Lifting gates IDO-PRO
IDO-PRO – Industrial power without compromise
IDO-PRO – Industrial power without compromise

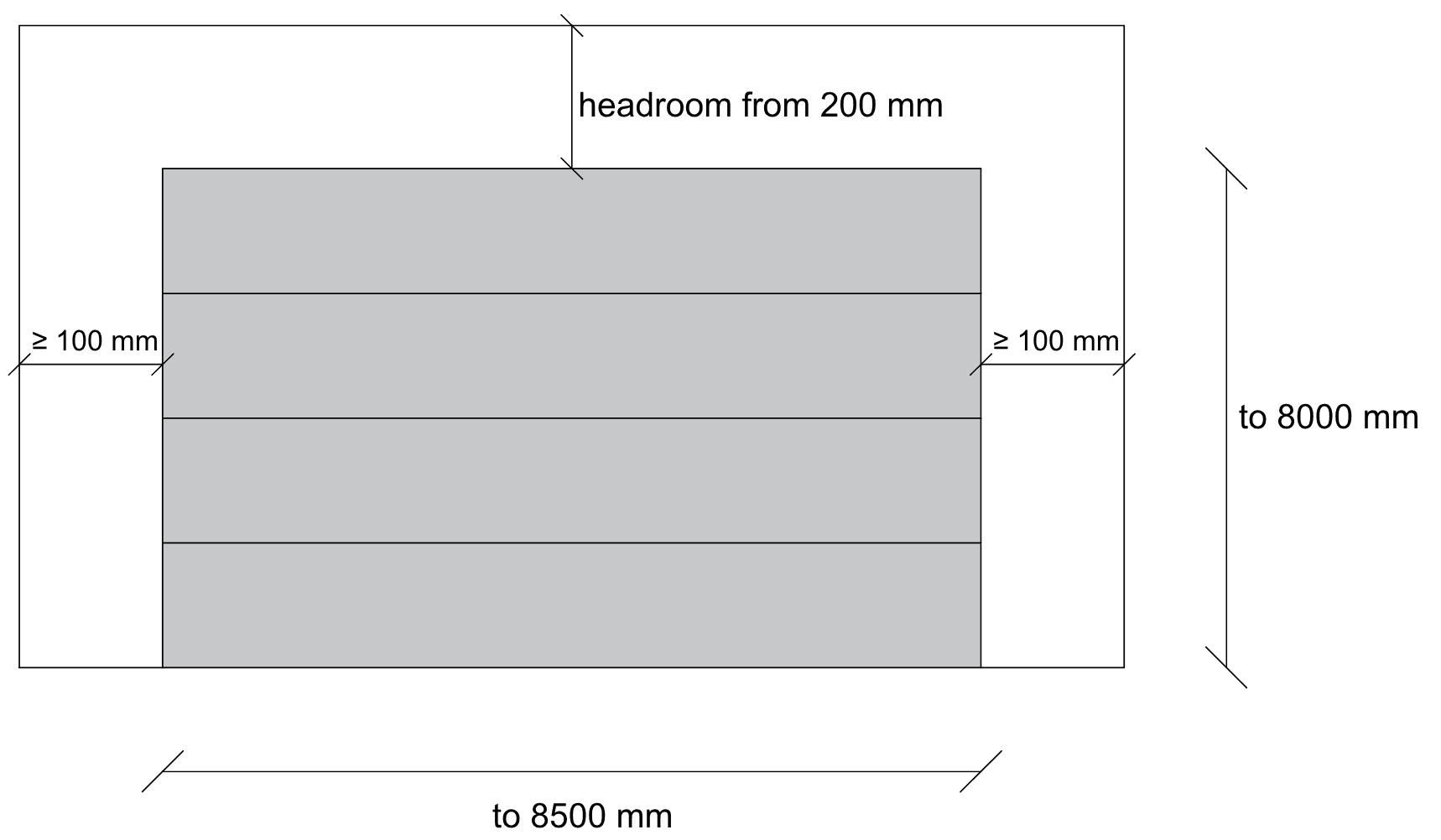

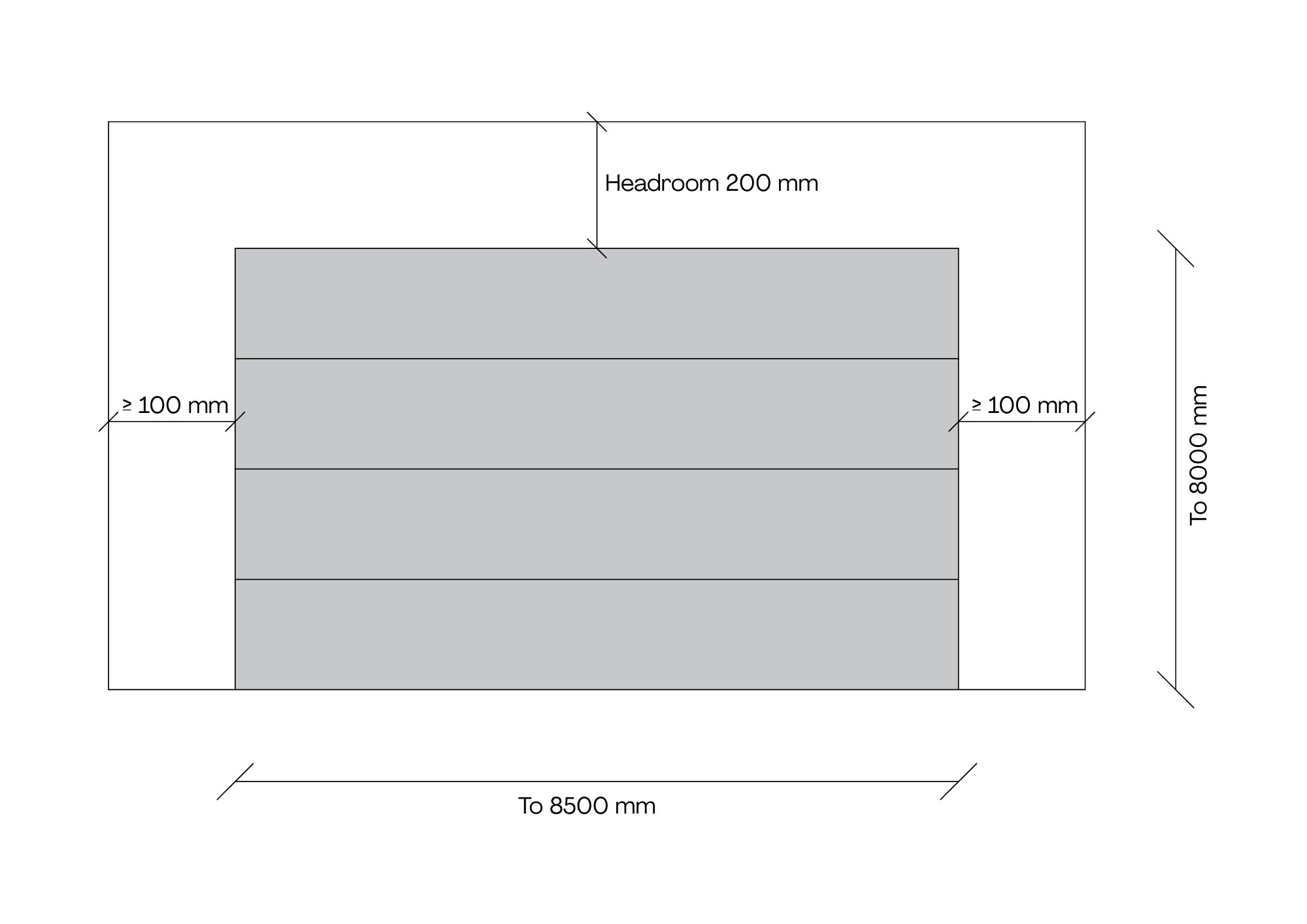

Maximum door width
8500 mm
Maximum door height
8000 mm
Minimum headroom
from 200 mm
Minimum side room (reveal widths)
100 mm
Required garage depth
opening height + 500 mm
Required garage depth with el. operator
opening height + 1150 mm
Limited space?
If the building structure does not allow for the installation of sectional doors, you can opt for hinged IDO-SD doors, IDO-HOME, IDO-COMPACT X or sliding IDO-SL doors, manufactured from the same insulated door panels.
Door type
Industrial
Spring type
Torsion springs (lintel-mounted)
Spring service life
min. 15,000 cycles
Air permeability
class 4
Wind resistance
class 4–5
Door construction
galvanized steel, 1.5–2 mm
Operating temperature
from −40°C to +50°C
CE marking
EN 13241-1
1
Profiled groove for the inter-panel seal
2
CFC-free polyurethane foam core. Fire classification: B1
3
High-quality steel sheet complying with DIN EN 10174
4
Zinc coating on both sides of the steel sheet
5
Surface textures available: SMOOTH, STUCCO, WOODGRAIN or SANDGRAIN
6
Protective PVC film
7
4 layers of steel sheet at the fixing points
Panel thickness
40 mm
Panel thermal transmittance, U
0,53 W/m²K
Steel sheet thickness
0,48 mm
Air permeability
class 3
Water tightness
class 3
Resistance to wind load
class 5
White RAL 9016
Stucco, V-grooves
White RAL 9016
Smooth (Flat) +3% surcharge on the door price
Silver RAL 9006
Stucco, V-grooves
Brown RAL 8014
Woodgrain, wide U-grooves
Brown RAL 8014
Woodgrain, wide U-groove
Anthracite RAL 7016 (grey)
Stucco, wide U-groove
Golden Oak
Smooth, wide U-groove +13% surcharge on the door price
Anthracite RAL 7016 (grey)
Smooth (Flat) +3% surcharge on the door price
Anthracite RAL 7016 (grey)
Sandgrain, without grooves +10% surcharge on the door price
Segmentas iš vidaus
Segmento vaizdas iš vidaus ir šoninis pjūvis
